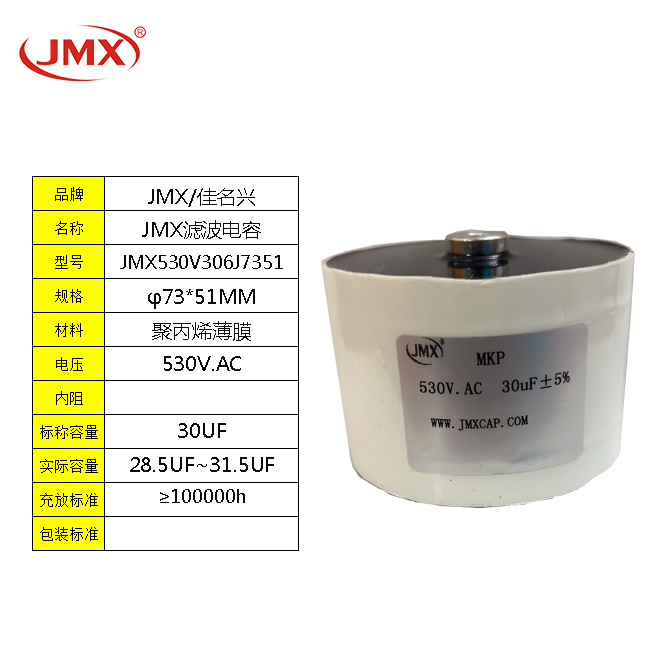

MKP高壓吸收IGBT電容器530VAC 30UF

采用金屬化聚丙烯薄膜進行無感式卷繞，特殊噴金工藝，邁拉膠帶、鋁外殼或不銹鋼外殼封裝，阻燃環氧樹脂灌封，銅螺母或銅螺栓引出。
具有高頻紋波吸收能力，高dv/dt，頻率特性好，雜散電感小。

適用于高頻開關電源中濾波、吸收、隔直、諧振電路。用于EMI電 路，如高頻逆變焊機、UPS、電動汽車等。在電力電子領域中，起到隔直、母線側高次諧波濾除、IGBT吸收保護、阻尼、箝位等作用。

MKP high-voltage absorption IGBT capacitor 530VAC 30UF

Using metalized polypropylene film for non inductive winding, special gold spraying process, Mylar tape, aluminum or stainless steel shell packaging, flame-retardant epoxy resin encapsulation, copper nut or copper bolt lead out.

Has high-frequency ripple absorption ability, high dv/dt, good frequency characteristics, and small stray inductance.
Suitable for filtering, absorbing, isolating, and resonant circuits in high-frequency switching power supplies. Used for EMI circuits, such as high-frequency inverter welding machines, UPS, electric vehicles, etc. In the field of power electronics, it plays a role in isolating direct current, filtering out high-order harmonics on the busbar side, absorbing and protecting IGBT, damping, clamping, and so on.
