薄膜軸向薄膜電容器 2.2uf ±5% 100V 音頻電容器225 分頻濾波耦合音頻電容

軸向薄膜電容器為無感結構，用金屬化聚丙烯膜作為電介質/電機繞制而成，導線采用鍍錫銅包鋼線（或軟線），外層用聚酯膠帶包裹，兩端用環氧樹脂密封。非感應式結構，臥式軸向引出，高頻損耗小，適用于大電流，絕緣電阻高，自愈性好，壽命長。廣泛用于高頻、直流、交流和脈沖電路中

容量capacity:2.2uf
耐壓pressurization:100V
誤差error:±5%
溫度temperature:40/85/21
尺寸size:09*31

2.2uf±5%100V產品應用：
適用于交/直流、脈動等多種應用，廣泛應用于視聽設備、電源設備、郵電通信、數據處理等各種電子電器設備中，尤其適用于 音響的分頻網絡。損耗小，溫升低，阻燃環氧樹脂灌封，CP線軸向引出。

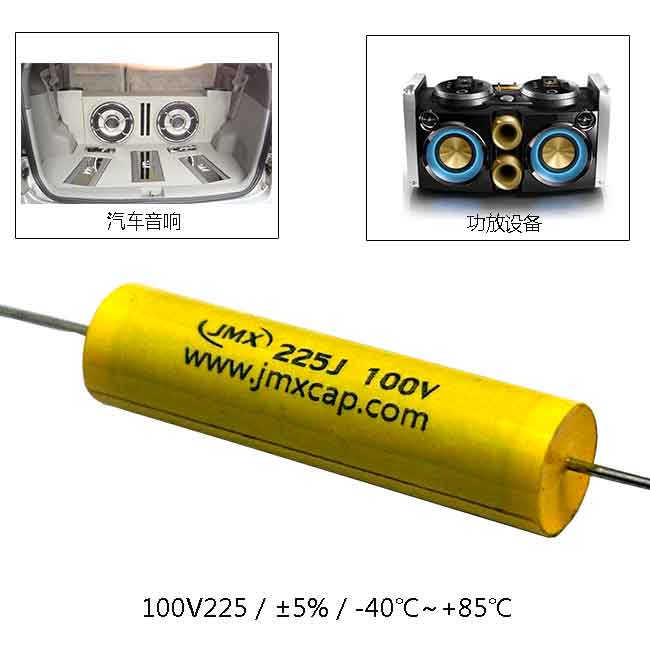

Thin film axial thin film capacitor 2.2uf ± 5% 100V audio capacitor 225 frequency division filtering coupled audio capacitor

The axial thin film capacitor is a non inductive structure, made of metallized polypropylene film as the dielectric/motor winding. The wires are made of tinned copper clad steel wire (or flexible wire), wrapped with polyester tape on the outer layer, and sealed with epoxy resin at both ends. Non induction structure, horizontal axial lead out, low high-frequency loss, suitable for high current, high insulation resistance, good self-healing, and long service life. Widely used in high-frequency, DC, AC, and pulse circuits

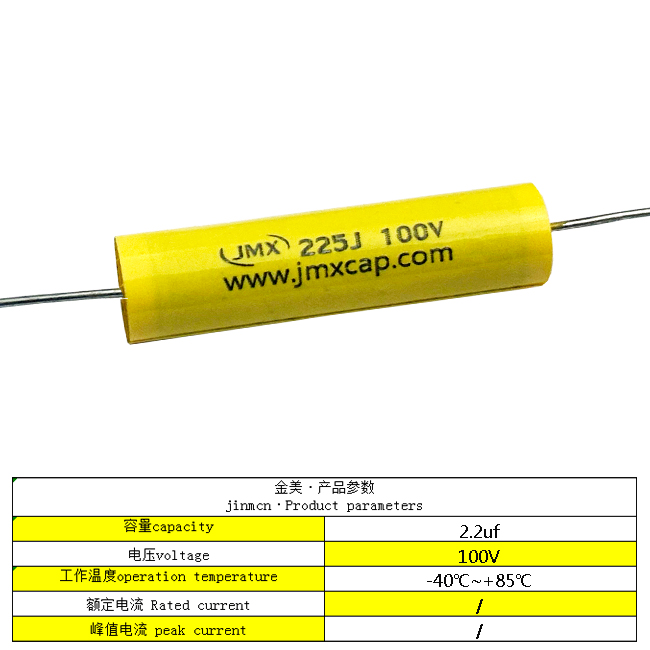

Capacity: 2.2uf

Pressure resistance: 100V

Error: ± 5%

Temperature: 40/85/21

Size: 09 * 31

2.2uf ± 5% 100V product application:

Suitable for various applications such as AC/DC, pulsation, etc., widely used in various electronic and electrical equipment such as audiovisual equipment, power supply equipment, postal and telecommunications communication, data processing, etc., especially suitable for frequency division networks of sound systems. Low loss, low temperature rise, flame retardant epoxy resin encapsulation, CP wire axial lead out.
